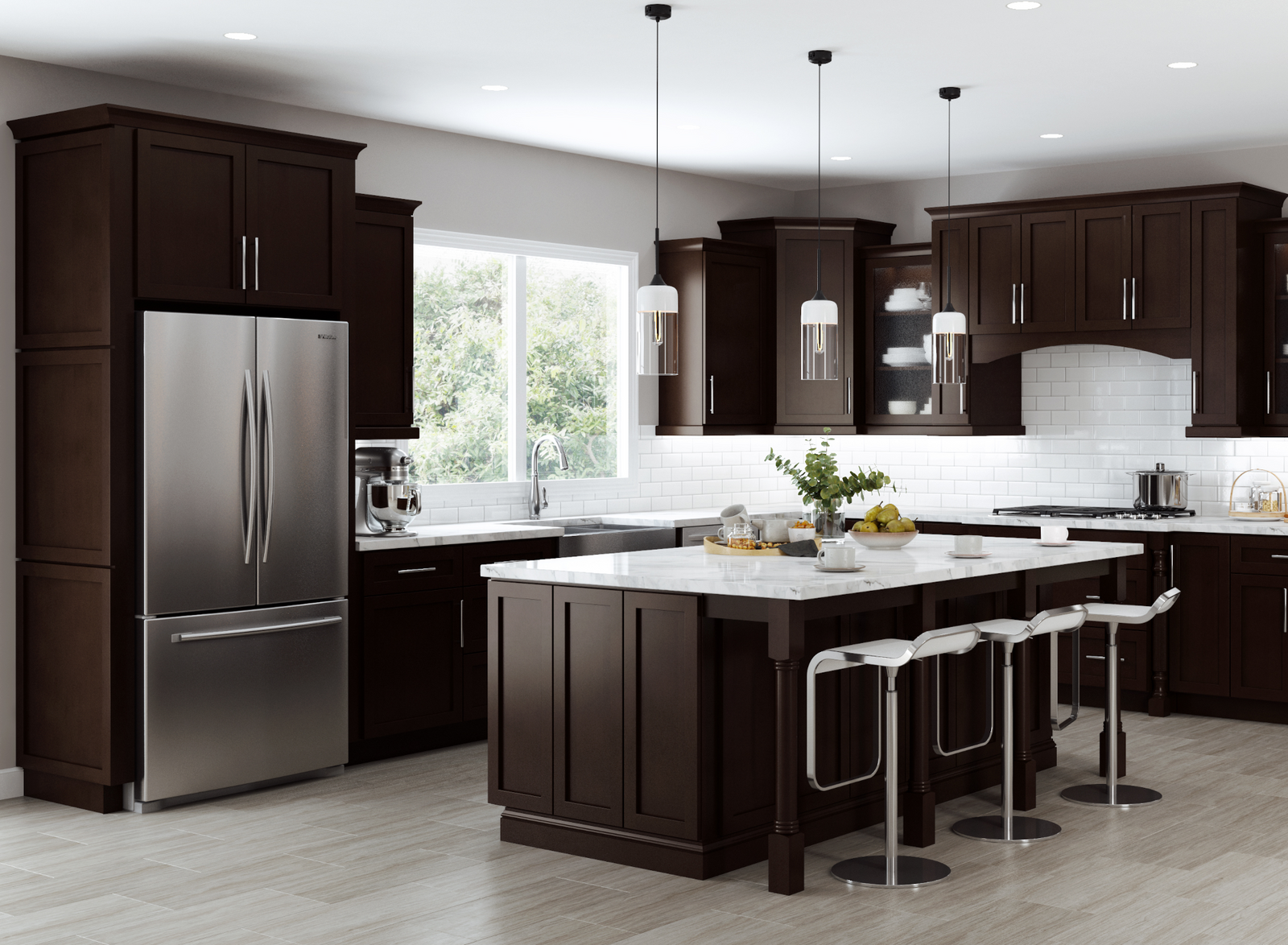

Caldwell Mocha Shaker Cabinets

The Caldwell Mocha collection is a true eye catcher. It goes perfect with every design, from the gourmet cook’s kitchen to the most modest of layouts. The collection features soft closing drawers and doors and a timeless full overlay, shaker design. If you want to upgrade your kitchen with dark sophisticated cabinets, then look no further! The Caldwell Mocha is what you’re looking for.

Basic kitchen starts at$4,065.47$2,439.28

Average Lead Time 1-2 Week Average Lead Time

Colors: Mocha

Refundable Free Shipping

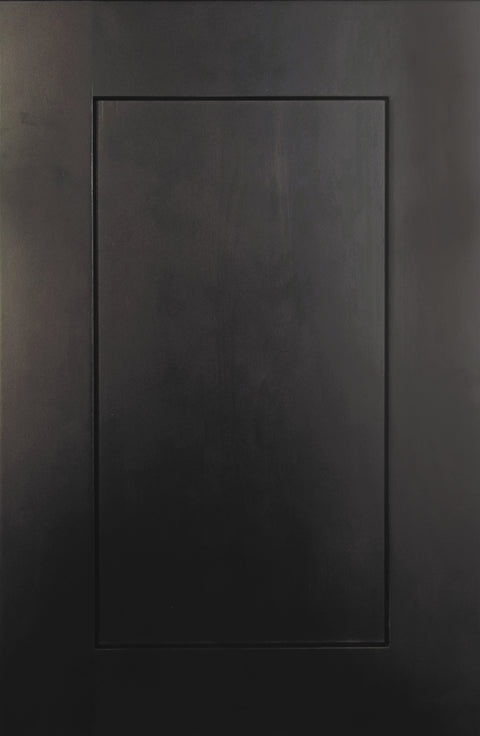

Caldwell Mocha Sample Door

$39.99$29.99

Start Your Order

Full description

Cabinet details & specs

Style

Shaker

Face Frame

3/4" x 1-1/2" solid wood

Door Frame

Solid maple or birch

Door Center

HDF

Sides

1/2" plywood

Top & Bottom (Wall)

1/2" plywood

Bottom (Base)

1/2" plywood

Back Panel

3" wide x 3/4" thick picture frame back with 1/4" plywood center

Shelves

3/4" plywood, adjustable, metal shelf rests

Base Cabinet Shelf Depth

18"

Drawer Front

5-piece

Drawer Box

Dovetail drawer boxes, 1/2" thick solid wood side panels, 3/8" thick plywood bottom

Drawer Glides

Full extension, soft closing, undermount glides

Base Corner Supports

Metal bracket reinforced corners

Overlay

Full

Hinges

Soft-close

Cabinet Interior

Clear coated natural maple interior

Center Stile

None

Assembly Method

Screw, glue & staple assembly

Finish

Polyurethane UV Resistant Finish w/ Glaze

Toe Kick

1/2" thick, edge banded

Installation Rail

3/4" thick x 1-1/2" wide

CARB Compliant

Yes

Door Hinges

Hinged right by default; doors can be flipped for a left hinge orientation (hinge holes may need to be drilled onsite)

Side Panels Finished

Yes

Installation/Design Note

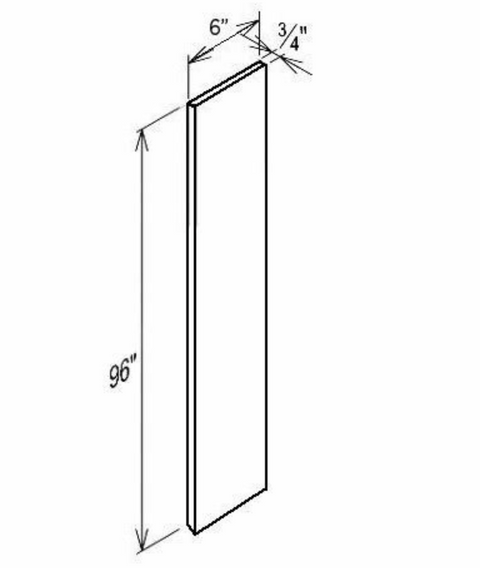

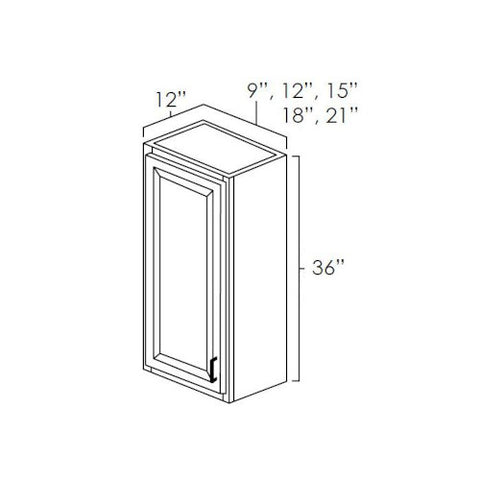

Scribe needs to be used for a wall cabinet against a wall or deeper cabinet/appliance. For base cabinets, a 1/2" space needs to be left (which can be filled with a filler that is cut to size). The cabinet depth measurement listed is the depth from the front of the face frame to the back of the cabinet, and does not include the cabinet door depth. Cabinet specs are subject to change without notice. *Cabinet measurements are typically converted from metric to inches and manufacturers will commonly round up to the nearest 1/4 inch. This can cause a measurement to be off by a fraction of an inch (less than 1/4") which is within normal industry standards.* Schematic images and renderings are generic and may not represent exact construction details for each collection. The exact specifications for this collection can be found in the construction details listed above.

Shipping

1-2 Week Average Lead Time
