Ridgeline Graphite Shaker Cabinets

Ridgeline Graphite Shaker Cabinets

The Ridgeline Graphite collection is a true eye catcher. It goes perfect with every design, from the gourmet cook’s kitchen to the most modest of layouts. The collection features soft closing drawers and doors and a timeless full overlay, shaker style design. If you want to upgrade your kitchen with sophisticated and classic cabinets, then look no further! The Ridgeline Graphite is what you’re looking for.

Basic kitchen starts at$4,597.64$2,758.58

Average Lead Time 4-8 Business Day Average Lead Time

Colors: Graphite

Cinder White Dove Antique White Grey Ivy Black Honey Navy Essence Oak
Ridgeline Graphite Sample Door
Refundable Free Shipping
Ridgeline Graphite Sample Door

$39.99$29.99

Start Your Order
The Ridgeline Graphite collection is a true eye catcher. It goes perfect with every design, from the gourmet cook’s kitchen to the most modest of layouts. The collection features soft closing drawers and doors and a timeless full overlay, shaker style design. If you want to upgrade your kitchen with sophisticated and classic cabinets, then look no further! The Ridgeline Graphite is what you’re looking for.
Style
Shaker
Face Frame
3/4" x 1-3/4" Birch
Door Frame
Premium HDF (HDF is used to avoid cracking/warping)
Door Center
Premium HDF (HDF is used to avoid cracking/warping)
Door Frame Width
2.75"
Center Panel Beveled Edge
Yes
Sides
1/2" A-Grade Plywood
Top & Bottom (Wall)
1/2" A-Grade Plywood
Bottom (Base)
1/2" A-Grade Plywood
Back Panel
1/2" A-Grade Plywood Full Back
Shelves
Adjustable 3/4" w/ Front Edge Banding
Base Cabinet Shelf Depth
12"
Drawer Box
5/8" solid hardwood, dovetailed drawer box, 5/16" plywood drawer box bottom, 5-piece drawer front construction
Drawer Glides
Undermount, Full Extension, Soft Close Glides
Base Corner Supports
3/4" Solid Wood Corner Blocks
Overlay
Full
Hinges
6-way Adjustable, Concealed, European Soft Close Hinges
Cabinet Interior
UV Coated Natural Interior (Prepped-for-glass cabinets will be finished to match the cabinet fronts)
Center Stile
None (unless listed in the cabinet description)
Assembly Method
Metal Clip or Glue & Staple: Cabinets come with Metal Clips (cleats - not already installed on the cabinets) that can be used to assemble or the cabinets can be Glued and Stapled.
Finish
7 step, acid-catalyzed finish process with a UV coating
Toe Kick
1/2" Plywood *please note that while individual toe kicks come with each base cabinet, the 8' pieces of toe kick (TK8) should also be ordered to cover the unfinished edges of the side panels*
Installation Rail
None
Wall Cabinet Bottoms Finished (Exterior)
Yes (just bottom panel, edges of side and back panel and recessed area is unfinished)
CARB Compliant
Yes
Door Hinges
Doors come pre-drilled for the hinges, the face frame has marks where to drill, and the customer chooses Right or Left during assembly.
Toe Kicks Included w/Base Cabinets
Yes, but there will be a small gap when two cabinets are side by side, so the TKC (8' toe kick) is needed if cabinets are next to each other.
Side Panels Finished
Yes
Installation/Design Note
The full-overlay door style leaves roughly a 1/4" clearance on the edge. If installed directly against a wall or deeper cabinet and a cabinet door opening of at least 90 degrees is desired, scribe molding should be installed between the cabinet and the wall (or deeper cabinet). If not, the door may not be able to open a full 90 degrees. For a full opening, a space of at least 1/4-1/2" is necessary, and a larger space may be needed depending on the decorative hardware used on the cabinets. The cabinet depth measurement listed is the depth from the front of the face frame to the back of the cabinet and does not include the cabinet door depth. Cabinet specs are subject to change without notice. *Cabinet measurements are typically converted from metric to inches and manufacturers will commonly round up to the nearest 1/4 inch. This can cause a measurement to be off by a fraction of an inch (less than 1/4") which is within normal industry standards.* Schematic images and renderings are generic and may not represent exact construction details for each collection. The exact specifications for this collection can be found in the construction details listed above.
4-8 Business Day Average Lead Time
Ridgeline Graphite Shaker Cabinets
Solid wood construction
Free shipping on $2500+
Beat any price by 5%
Same-day free design

Quick links:

Showing 25 products.

Ready to assemble Pre-assembled

Single Door Base Cabinets

Quick links:

Showing 25 products.

Double Door Base Cabinets

Quick links:

Showing 25 products.

Sink Base Cabinets

Quick links:

Showing 25 products.

Other Base Cabinets

Ridgeline Graphite 36" Vanity Sink Base

SC-VS36

Ridgeline Graphite 36" Vanity Sink Base

The Ridgeline Graphite 36" vanity sink base cabinet is 21" deep. It includes 2 doors and 2 false drawers. Dimensions: 36" W x 34-1/2" H x 21" D

$471.98 $786.63 Save 40%
Ridgeline Graphite 30" Vanity Sink Base

SC-VS30S

Ridgeline Graphite 30" Vanity Sink Base

The Ridgeline Graphite 30" vanity sink base cabinet is 24" deep. It includes 2 doors and 2 false drawers Dimensions: 30" W x 34-1/2" H x 21" D

$392.70 $654.50 Save 40%

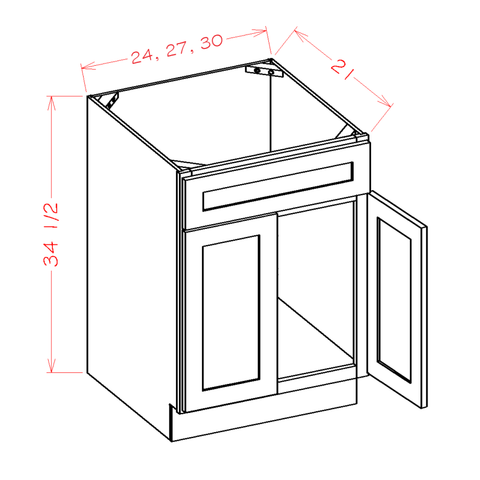

Ridgeline Graphite 27" Vanity Sink Base

SC-VS27

Ridgeline Graphite 27" Vanity Sink Base

The Ridgeline Graphite 27" vanity sink base cabinet is 21" deep. It includes 2 doors and 1 false drawer. Dimensions: 27" W x 34-1/2" H x 21" D

$384.30 $640.50 Save 40%
Ridgeline Graphite 24" Vanity Sink Base

SC-VS24

Ridgeline Graphite 24" Vanity Sink Base

The Ridgeline Graphite 24" vanity sink base cabinet is 21" deep. It includes 2 doors and 1 false drawer. Dimensions: 24" W x 34-1/2" H x 21" D

$357.00 $595.00 Save 40%
Ridgeline Graphite 48" Vanity Combo w/ Drawers

SC-VDDB48

Ridgeline Graphite 48" Vanity Combo w/ Drawers

The Ridgeline Graphite 48" vanity combo for single sink with drawers is 21" deep. It has 2 doors, 3 drawers on each side and 1 false front drawer. Dimensions...

$1,064.18 $1,773.63 Save 40%

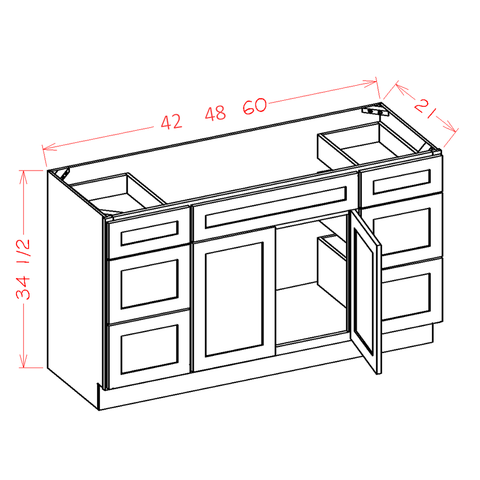

Ridgeline Graphite 42" Vanity Combo w/ Drawers

SC-VDDB42

Ridgeline Graphite 42" Vanity Combo w/ Drawers

The Ridgeline Graphite 42" vanity combo for single sink with drawers is 21" deep. It has 1 door, 3 drawers on each side and 1 false front drawer. Dimensions:...

$1,032.68 $1,721.13 Save 40%

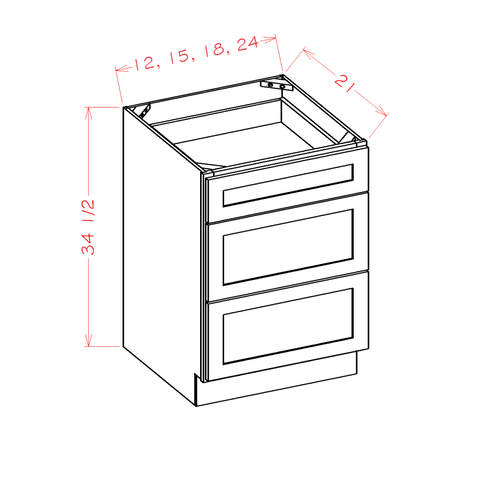

Ridgeline Graphite 12" Vanity Drawer Base

SC-3VDB12

Ridgeline Graphite 12" Vanity Drawer Base

The Ridgeline Graphite 12" W x 34.5" H x 21" D vanity 3-drawer base cabinet is 34-1/2" high and 21" deep. It has 3 drawers. Dimensions: 12" W x 34-1/2" H x ...

$449.93 $749.88 Save 40%
