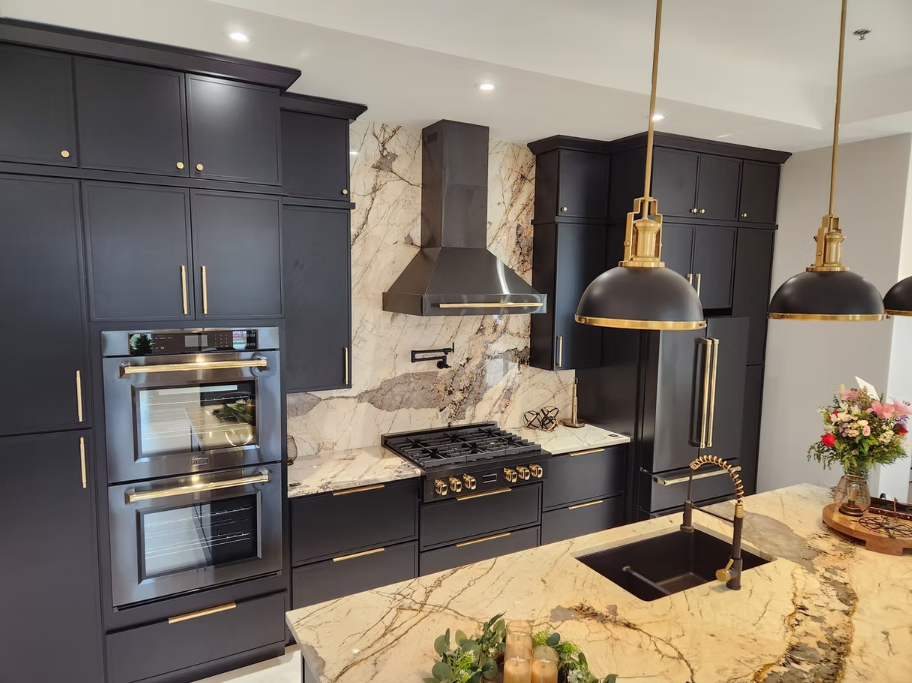

Haven Graphite Slim Shaker Cabinets

The Haven Graphite pairs a near black graphite tone with the clean lines of a slim shaker door. It goes perfect with every design and setting, from the gourmet cook’s kitchen to the most modest of layouts. The collection features soft closing drawers and doors and a timeless full overlay, slim shaker design. If you want to modernize your kitchen with dark sophisticated cabinets, then look no further! The Haven Graphite is what you’re looking for.

Basic kitchen starts at$6,990.29$3,347.20

Average Lead Time 8-10 Business Day Average Lead Time

Colors: Graphite

Refundable Free Shipping

Haven Graphite Sample Door

$39.99$29.99

Start Your Order

Full description

Cabinet details & specs

Style

Slim Shaker

Face Frame

3/4" solid wood

Door Frame

HDF

Door Center

HDF

Door Frame Width

Center Panel Beveled Edge

Yes

Sides

1/2" plywood

Top & Bottom (Wall)

1/2" plywood

Bottom (Base)

1/2" plywood

Back Panel

1/2" plywood center

Shelves

3/4" plywood, adjustable, plastic shelf clips

Base Cabinet Shelf Depth

12"

Drawer Front

5-piece

Drawer Box

Dovetail drawer boxes, 3/4" thick solid wood side panels, 1/2" thick plywood bottom

Drawer Glides

Full extension, soft closing, undermount glides

Base Corner Supports

Metal bracket reinforced corners

Overlay

Full

Hinges

Soft-close

Cabinet Interior

Matches door finish, including shelves (drawer boxes are a natural finish)

Center Stile

Cabinets 39" and wider will have center stiles; these cabinets do not have butt doors.

Assembly Method

Screw & Glue

Finish

Baked on UV Finish

Toe Kick

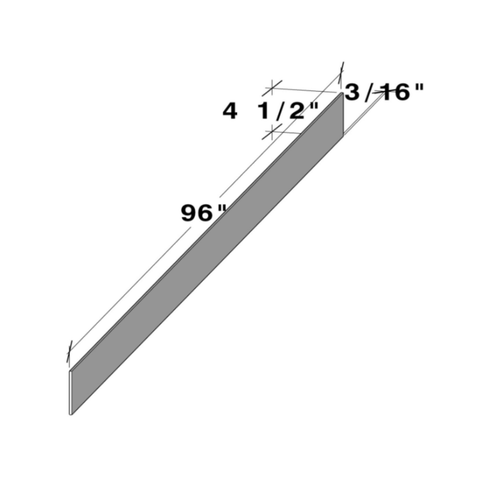

1/2" thick *please note that while individual toe kicks come with each base cabinet, the 8' pieces of toe kick (TK8) should also be ordered to cover the unfinished edges of the side panels*

Installation Rail

3/4" plywood

CARB Compliant

Yes

Door Hinges

Hinged right by default; doors can be flipped for a left hinge orientation (hinge holes may need to be drilled onsite).

Side Panels Finished

Yes

Installation/Design Note

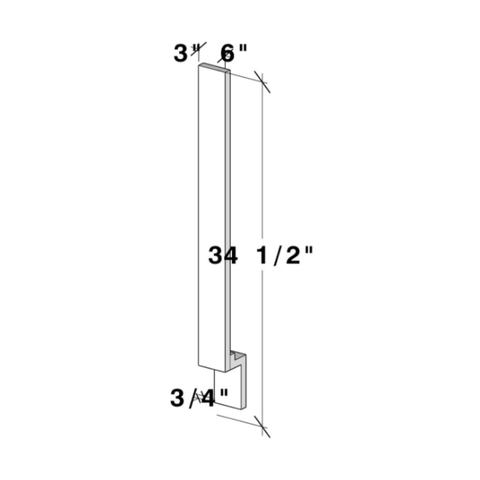

Scribe needs to be used for a wall cabinet against a wall or deeper cabinet/appliance. For base cabinets, a 1/2" space needs to be left (which can be filled with a filler that is cut to size). The cabinet depth measurement listed is the depth from the front of the face frame to the back of the cabinet, and does not include the cabinet door depth. Cabinet specs are subject to change without notice. *Cabinet measurements are typically converted from metric to inches and manufacturers will commonly round up to the nearest 1/4 inch. This can cause a measurement to be off by a fraction of an inch (less than 1/4") which is within normal industry standards.* Schematic images and renderings are generic and may not represent exact construction details for each collection. The exact specifications for this collection can be found in the construction details listed above.

Shipping

8-10 Business Day Average Lead Time
