Ellington Saddle Raised Panel Cabinets

Ellington Saddle Raised Panel Cabinets

A warm, traditional collection for lovers of timeless character. Ellington Saddle pairs an old-time brown stain with a dark glaze and a classic full overlay, raised panel design, finished with soft closing drawers and doors. If you want to add rich, sophisticated warmth to your kitchen, then look no further! The Ellington Saddle is what you're looking for.

Basic kitchen starts at$5,336.84$3,202.10

Average Lead Time 4-8 Business Day Average Lead Time

Colors: Saddle

Saddle Antique White
Ellington Saddle Sample Door
Refundable Free Shipping
Ellington Saddle Sample Door

$39.99$29.99

Start Your Order
A warm, traditional collection for lovers of timeless character. Ellington Saddle pairs an old-time brown stain with a dark glaze and a classic full overlay, raised panel design, finished with soft closing drawers and doors. If you want to add rich, sophisticated warmth to your kitchen, then look no further! The Ellington Saddle is what you're looking for.
Style
Raised Panel
Face Frame
3/4" x 1-3/4" Birch
Door Frame
Painted Premium HDF (HDF is used to avoid cracking/warping)
Door Center
Painted Premium HDF (HDF is used to avoid cracking/warping)
Door Frame Width
3"
Center Panel Beveled Edge
Yes
Sides
1/2" A-Grade Plywood
Top & Bottom (Wall)
1/2" A-Grade Plywood
Bottom (Base)
1/2" A-Grade Plywood
Back Panel
1/2" A-Grade Plywood Full Back
Shelves
Adjustable 3/4" w/ Front Edge Banding
Base Cabinet Shelf Depth
12"
Drawer Box
5/8" solid hardwood, dovetailed drawer box, 5/16" plywood drawer box bottom, 5-piece drawer front construction
Drawer Glides
Undermount, Full Extension, Soft Close Glides
Base Corner Supports
3/4" Solid Wood Corner Blocks
Overlay
Full
Hinges
6-way Adjustable, Concealed, European Soft Close Hinges
Cabinet Interior
UV Coated Natural Interior (Prepped-for-glass cabinets will be finished to match the cabinet fronts)
Center Stile
None (unless listed in the cabinet description)
Assembly Method
Metal Clip or Glue & Staple: Cabinets come with Metal Clips (cleats - not already installed on the cabinets) that can be used to assemble or the cabinets can be Glued and Stapled.
Finish
7 step, acid-catalyzed finish process with a UV coating
Toe Kick
1/2" Plywood *please note that while individual toe kicks come with each base cabinet, the 8' pieces of toe kick (TK8) should also be ordered to cover the unfinished edges of the side panels*
Installation Rail
None
Wall Cabinet Bottoms Finished (Exterior)
Yes (just bottom panel, edges of side and back panel and recessed area is unfinished)
CARB Compliant
Yes
Door Hinges
Doors come pre-drilled for the hinges, the face frame has marks where to drill, and the customer chooses Right or Left during assembly.
Toe Kicks Included w/Base Cabinets
Yes, but there will be a small gap when two cabinets are side by side, so the TKC (8' toe kick) is needed if cabinets are next to each other.
Side Panels Finished
Yes
Installation/Design Note
The full-overlay door style leaves roughly a 1/4" clearance on the edge. If installed directly against a wall or deeper cabinet and a cabinet door opening of at least 90 degrees is desired, scribe molding should be installed between the cabinet and the wall (or deeper cabinet). If not, the door may not be able to open a full 90 degrees. For a full opening, a space of at least 1/4-1/2" is necessary, and a larger space may be needed depending on the decorative hardware used on the cabinets. The cabinet depth measurement listed is the depth from the front of the face frame to the back of the cabinet, and does not include the cabinet door depth. Cabinet specs are subject to change without notice. *Cabinet measurements are typically converted from metric to inches and manufacturers will commonly round up to the nearest 1/4 inch. This can cause a measurement to be off by a fraction of an inch (less than 1/4") which is within normal industry standards.* Schematic images and renderings are generic and may not represent exact construction details for each collection. The exact specifications for this collection can be found in the construction details listed above.
4-8 Business Day Average Lead Time
Ellington Saddle Raised Panel Cabinets
Solid wood construction
Free shipping on $5000+
Beat any price by 5%
Same-day free design

Quick links:

Showing 92 products.

Ready to assemble Pre-assembled

Single Door Base Cabinets

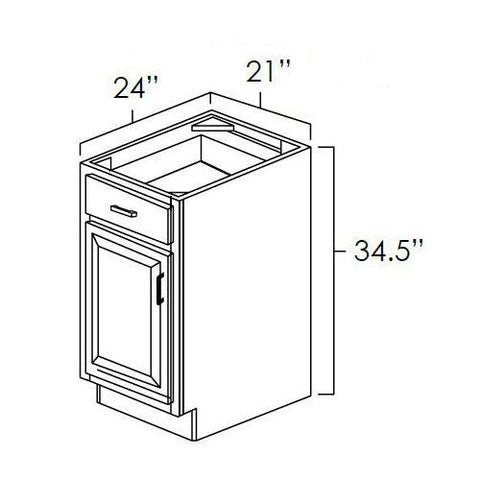

Casselberry Saddle 21" Base Cabinet

CS-B21

Ellington Saddle 21" Base Cabinet

The Ellington Saddle 21" Base Cabinet is 34-1/2" high and 24" deep. It comes with 1 door, 1 drawer and 1 shelf. Dimensions: 21" W x 34-1/2" H x 24" D

$431.03 $718.38 Save 40%
Casselberry Saddle 18" Base Cabinet

CS-B18

Ellington Saddle 18" Base Cabinet

The Ellington Saddle 18" Base Cabinet is 34-1/2" high and 24" deep. It comes with 1 door, 1 drawer and 1 shelf. Dimensions: 18" W x 34-1/2" H x 24" D

$398.48 $664.13 Save 40%
Casselberry Saddle 15" Base Cabinet

CS-B15

Ellington Saddle 15" Base Cabinet

The Ellington Saddle 15" Base Cabinet is 34-1/2" high and 24" deep. It comes with 1 door, 1 drawer and 1 shelf Dimensions: 15" W x 34-1/2" H x 24" D

$364.35 $607.25 Save 40%
Casselberry Saddle 12" Base Cabinet

CS-B12

Ellington Saddle 12" Base Cabinet

The Ellington Saddle 12" Base Cabinet is 34-1/2" high and 24" deep. It comes with 1 door, 1 drawer and 1 shelf. Dimensions: 12" W x 34-1/2" H x 24" D

$330.23 $550.38 Save 40%

Quick links:

Showing 92 products.

Double Door Base Cabinets

Ellington Saddle 42" Base Cabinet

CS-B42

Ellington Saddle 42" Base Cabinet

The Ellington Saddle 42" Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors, 2 drawers and 1 shelf. Dimensions: 42" W x 34-1/2" H x 24" D

$724.50 $1,207.50 Save 40%
Ellington Saddle 36" Base Cabinet

CS-B36

Ellington Saddle 36" Base Cabinet

The Ellington Saddle 36" Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors, 2 drawers and 1 shelf. Dimensions: 36" W x 34-1/2" H x 24" D

$683.03 $1,138.38 Save 40%

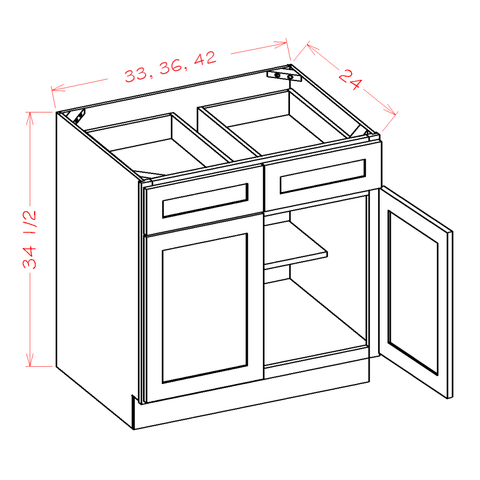

Ellington Saddle 33" Base Cabinet

CS-B33

Ellington Saddle 33" Base Cabinet

The Ellington Saddle 33" Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors, 2 drawers and 1 shelf. Dimensions: 33" W x 34-1/2" H x 24" D

$640.50 $1,067.50 Save 40%
Casselberry Saddle 30" Base Cabinet

CS-B30S

Ellington Saddle 30" Base Cabinet

Ellington Saddle 30" Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors, 2 drawers and 1 shelf. Dimensions: 30" W x 34-1/2" H x 24" D

$573.83 $956.38 Save 40%
Casselberry Saddle 27" Base Cabinet

CS-B27

Ellington Saddle 27" Base Cabinet

The Ellington Saddle 27" Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors, 1 drawer and 1 shelf. Dimensions: 27" W x 34-1/2" H x 24" D

$519.23 $865.38 Save 40%
Casselberry Saddle 24" Base Cabinet

CS-B24

Ellington Saddle 24" Base Cabinet

The Ellington Saddle 24" Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors, 1 drawer and 1 shelf. Dimensions: 24" W x 34-1/2" H x 24" D

$473.55 $789.25 Save 40%

Quick links:

Showing 92 products.

Drawer Base Cabinets

Casselberry Saddle 36" 3-Drawer Base Cabinet

CS-3DB36

Ellington Saddle 36" 3-Drawer Base Cabinet

The Ellington Saddle 36" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers Dimensions: 36" W x 34-1/2" H x 24" D

$820.05 $1,366.75 Save 40%
Casselberry Saddle 30" 3-Drawer Base Cabinet

CS-3DB30

Ellington Saddle 30" 3-Drawer Base Cabinet

The Ellington Saddle 30" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 30" W x 34-1/2" H x 24" D

$721.35 $1,202.25 Save 40%
Casselberry Saddle 24" 3-Drawer Base Cabinet

CS-3DB24

Ellington Saddle 24" 3-Drawer Base Cabinet

The Ellington Saddle 24" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 24" W x 34-1/2" H x 24" D

$639.45 $1,065.75 Save 40%
Casselberry Saddle 21" 3-Drawer Base Cabinet

CS-3DB21

Ellington Saddle 21" 3-Drawer Base Cabinet

The Ellington Saddle 21" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 21" W x 34-1/2" H x 24" D

$603.23 $1,005.38 Save 40%
Casselberry Saddle 15" 3-Drawer Base Cabinet

CS-3DB15

Ellington Saddle 15" 3-Drawer Base Cabinet

The Ellington Saddle 15" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers Dimensions: 15" W x 34-1/2" H x 24" D

$532.35 $887.25 Save 40%
Casselberry Saddle 36" 2-Drawer Base Cabinet

CS-2DB36

Ellington Saddle 36" 2-Drawer Base Cabinet

The Ellington Saddle 36" 2-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 drawers. Dimension: 36" W x 34-1/2" H x 24" D

$819.00 $1,365.00 Save 40%
Casselberry Saddle 30" 2-Drawer Base Cabinet

CS-2DB30

Ellington Saddle 30" 2-Drawer Base Cabinet

The Ellington Saddle 30" 2-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 drawers. Dimension: 30" W x 34-1/2" H x 24" D

$720.30 $1,200.50 Save 40%
Casselberry Saddle 24" 2-Drawer Base Cabinet

CS-2DB24

Ellington Saddle 24" 2-Drawer Base Cabinet

The Ellington Saddle 24" 2-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 drawers. Dimensions: 24" W x 34-1/2" H x 24" D

$637.88 $1,063.13 Save 40%

Quick links:

Showing 92 products.

Corner Base Cabinets

Casselberry Saddle 36" Base Easy Reach Cabinet

CS-BER36

Ellington Saddle 36" Base Easy Reach Cabinet

The Ellington Saddle 36" Base Easy Reach Cabinet is 34-1/2" high and 24" deep. It comes with 1 bi-fold door and 1 shelf. Dimensions: 36'' W x 34-1/2'' H x 2...

$622.13 $1,036.88 Save 40%
Casselberry Saddle 33" Base Easy Reach Cabinet

CS-BER33

Ellington Saddle 33" Base Easy Reach Cabinet

The Ellington Saddle 33" Base Easy Reach Cabinet is 34-1/2" high and 24" deep. It comes with 1 bi-fold door and 1 shelf. Dimensions: 33'' W x 34-1/2'' H x 2...

$563.33 $938.88 Save 40%

Quick links:

Showing 92 products.

Sink Base Cabinets

Casselberry Saddle 36" Sink Base

CS-SB36

Ellington Saddle 36" Sink Base

The Ellington Saddle 36" Sink Base is 34-1/2" high and 24" deep. It comes with 2 doors and 2 false drawers. Dimensions: 36" W x 34-1/2" H x 24" D

$512.93 $854.88 Save 40%
Casselberry Saddle 33" Sink Base

CS-SB33

Ellington Saddle 33" Sink Base

The Ellington Saddle 33" Sink Base is 34-1/2" high and 24" deep. It comes with 2 doors and 2 false drawers. Dimensions: 33" W x 34-1/2" H x 24" D

$506.10 $843.50 Save 40%
Casselberry Saddle 42" Diagonal Sink Front

CS-DCSF42

Ellington Saddle 42" Diagonal Sink Front

Ellington Saddle 42" Diagonal Sink Front Dimensions: 26-1/4" W x 30" H x 3/4" D Note: To be used in conjunction with corresponding Diagonal Corner Sink Floor...

$214.20 $357.00 Save 40%

Quick links:

Showing 92 products.

Other Base Cabinets

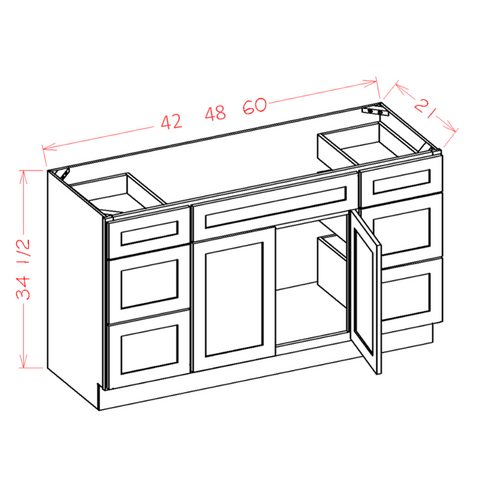

Casselberry Saddle 48" Vanity Combo w/ Drawers

CS-VDDB48

Ellington Saddle 48" Vanity Combo w/ Drawers

The Ellington Saddle 48" vanity combo for single sink with drawers is 21" deep. It has 2 doors, 3 drawers on each side and 1 false front drawer. Dimensions: ...

$1,117.20 $1,862.00 Save 40%
Casselberry Saddle 36" Vanity Sink Base

CS-VS36

Ellington Saddle 36" Vanity Sink Base

The Ellington Saddle 36" vanity sink base cabinet is 21" deep. It includes 2 doors and 2 false drawers. Dimensions: 36" W x 34-1/2" H x 21" D

$495.60 $826.00 Save 40%

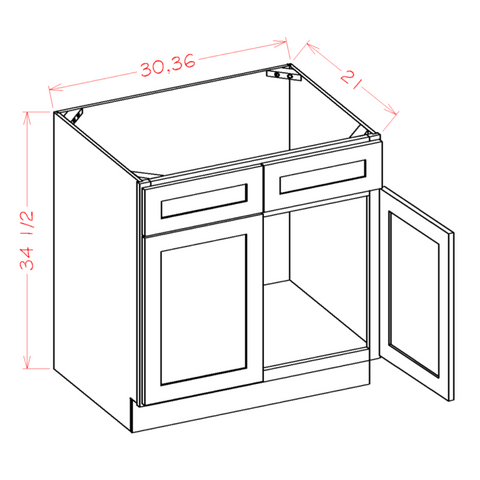

Casselberry Saddle 30" Vanity Sink Base

CS-VS30S

Ellington Saddle 30" Vanity Sink Base

The Ellington Saddle 30" vanity sink base cabinet is 24" deep. It includes 2 doors and 2 false drawers Dimensions: 30" W x 34-1/2" H x 21" D

$412.65 $687.75 Save 40%

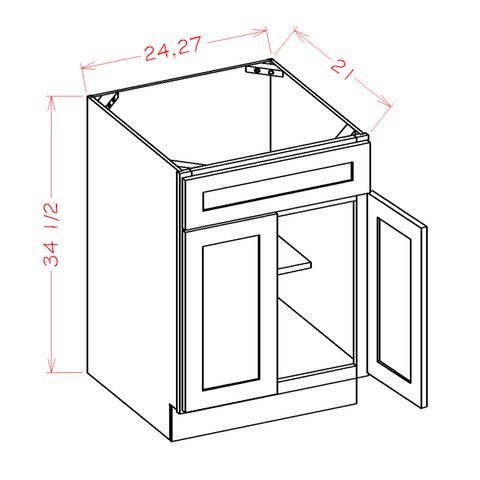

Casselberry Saddle 27" Vanity Sink Base

CS-VS27

Ellington Saddle 27" Vanity Sink Base

The Ellington Saddle 27" vanity sink base cabinet is 21" deep. It includes 2 doors and 1 false drawer. Dimensions: 27" W x 34-1/2" H x 21" D

$403.20 $672.00 Save 40%

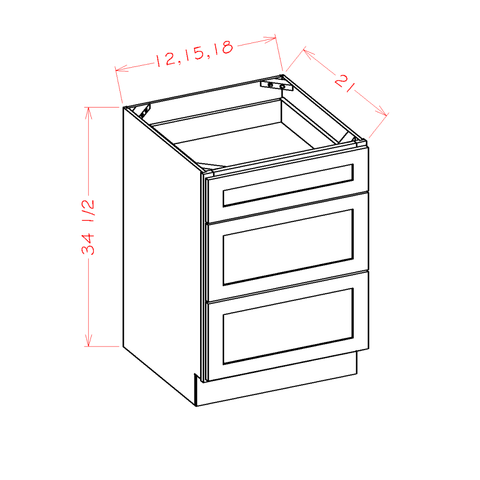

Casselberry Saddle 15" Vanity Drawer Base

CS-3VDB15

Ellington Saddle 15" Vanity Drawer Base

The Ellington Saddle 15" W x 34.5" H x 21" D vanity 3-drawer base cabinet has 3 drawers. Dimensions: 15" W x 34-1/2" H x 21" D

$506.63 $844.38 Save 40%
Casselberry Saddle 30" Microwave Base Cabinet

CS-BMW30

Ellington Saddle 30" Microwave Base Cabinet

The Ellington Saddle 30" Microwave Base Cabinet is 34-1/2" high and 24" deep.It comes with 1 drawer. Dimensions: 30" W x 34-1/2" H x 24" D

$512.93 $854.88 Save 40%
Casselberry Saddle 24" Angle Base Cabinet

CS-BEC24

Ellington Saddle 24" Angle Base Cabinet

The Ellington Saddle 24" Angle Base Cabinet is 34-1/2" high and 24" deep. It comes with 2 doors and 2 shelves. Dimensions: 24" W x 34-1/2" H x 24" D

$423.15 $705.25 Save 40%
