A warm, traditional collection for lovers of timeless character. Ellington Saddle pairs an old-time brown stain with a dark glaze and a classic full overlay, raised panel design, finished with soft closing drawers and doors. If you want to add rich, sophisticated warmth to your kitchen, then look no further! The Ellington Saddle is what you're looking for.

Basic kitchen starts at$5,336.84$3,202.10

Average Lead Time 4-8 Business Day Average Lead Time

Colors: Saddle

Saddle Antique White
Ellington Saddle Sample Door
Refundable Free Shipping
Ellington Saddle Sample Door

$39.99$29.99

Start Your Order
A warm, traditional collection for lovers of timeless character. Ellington Saddle pairs an old-time brown stain with a dark glaze and a classic full overlay, raised panel design, finished with soft closing drawers and doors. If you want to add rich, sophisticated warmth to your kitchen, then look no further! The Ellington Saddle is what you're looking for.
Style
Raised Panel
Face Frame
3/4" x 1-3/4" Birch
Door Frame
Painted Premium HDF (HDF is used to avoid cracking/warping)
Door Center
Painted Premium HDF (HDF is used to avoid cracking/warping)
Door Frame Width
3"
Center Panel Beveled Edge
Yes
Sides
1/2" A-Grade Plywood
Top & Bottom (Wall)
1/2" A-Grade Plywood
Bottom (Base)
1/2" A-Grade Plywood
Back Panel
1/2" A-Grade Plywood Full Back
Shelves
Adjustable 3/4" w/ Front Edge Banding
Base Cabinet Shelf Depth
12"
Drawer Box
5/8" solid hardwood, dovetailed drawer box, 5/16" plywood drawer box bottom, 5-piece drawer front construction
Drawer Glides
Undermount, Full Extension, Soft Close Glides
Base Corner Supports
3/4" Solid Wood Corner Blocks
Overlay
Full
Hinges
6-way Adjustable, Concealed, European Soft Close Hinges
Cabinet Interior
UV Coated Natural Interior (Prepped-for-glass cabinets will be finished to match the cabinet fronts)
Center Stile
None (unless listed in the cabinet description)
Assembly Method
Metal Clip or Glue & Staple: Cabinets come with Metal Clips (cleats - not already installed on the cabinets) that can be used to assemble or the cabinets can be Glued and Stapled.
Finish
7 step, acid-catalyzed finish process with a UV coating
Toe Kick
1/2" Plywood *please note that while individual toe kicks come with each base cabinet, the 8' pieces of toe kick (TK8) should also be ordered to cover the unfinished edges of the side panels*
Installation Rail
None
Wall Cabinet Bottoms Finished (Exterior)
Yes (just bottom panel, edges of side and back panel and recessed area is unfinished)
CARB Compliant
Yes
Door Hinges
Doors come pre-drilled for the hinges, the face frame has marks where to drill, and the customer chooses Right or Left during assembly.
Toe Kicks Included w/Base Cabinets
Yes, but there will be a small gap when two cabinets are side by side, so the TKC (8' toe kick) is needed if cabinets are next to each other.
Side Panels Finished
Yes
Installation/Design Note
The full-overlay door style leaves roughly a 1/4" clearance on the edge. If installed directly against a wall or deeper cabinet and a cabinet door opening of at least 90 degrees is desired, scribe molding should be installed between the cabinet and the wall (or deeper cabinet). If not, the door may not be able to open a full 90 degrees. For a full opening, a space of at least 1/4-1/2" is necessary, and a larger space may be needed depending on the decorative hardware used on the cabinets. The cabinet depth measurement listed is the depth from the front of the face frame to the back of the cabinet, and does not include the cabinet door depth. Cabinet specs are subject to change without notice. *Cabinet measurements are typically converted from metric to inches and manufacturers will commonly round up to the nearest 1/4 inch. This can cause a measurement to be off by a fraction of an inch (less than 1/4") which is within normal industry standards.* Schematic images and renderings are generic and may not represent exact construction details for each collection. The exact specifications for this collection can be found in the construction details listed above.
4-8 Business Day Average Lead Time
Ellington Saddle Raised Panel Cabinets
Solid wood construction
Free shipping on $5000+
Beat any price by 5%
Same-day free design

Quick links:

Showing 19 products.

Ready to assemble Pre-assembled

Single Door Base Cabinets

Quick links:

Showing 19 products.

Double Door Base Cabinets

Quick links:

Showing 19 products.

Drawer Base Cabinets

Casselberry Saddle 18" 3-Drawer Base Cabinet

CS-3DB18

Ellington Saddle 18" 3-Drawer Base Cabinet

The Ellington Saddle 18" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 18" W x 34-1/2" H x 24" D

$568.58 $947.63 Save 40%
Casselberry Saddle 12" 3-Drawer Base Cabinet

CS-3DB12

Ellington Saddle 12" 3-Drawer Base Cabinet

The Ellington Saddle 12" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 12" W x 34-1/2" H x 24" D

$484.58 $807.63 Save 40%
Ellington Saddle 33" 3-Drawer Base Cabinet

CS-3DB33

Ellington Saddle 33" 3-Drawer Base Cabinet

The Ellington Saddle 33" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 33" W x 34-1/2" H x 24" D

$770.70 $1,284.50 Save 40%
Ellington Saddle 27" 3-Drawer Base Cabinet

CS-3DB27

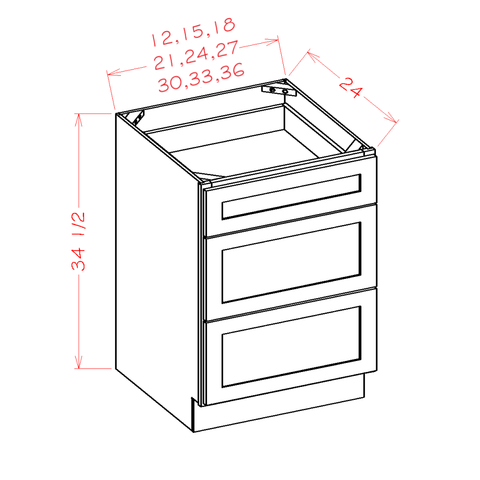

Ellington Saddle 27" 3-Drawer Base Cabinet

The Ellington Saddle 27" 3-Drawer Base Cabinet is 34-1/2" high and 24" deep. It comes with 3 drawers. Dimensions: 27" W x 34-1/2" H x 24" D

$684.08 $1,140.13 Save 40%

Quick links:

Showing 19 products.

Corner Base Cabinets

Quick links:

Showing 19 products.

Sink Base Cabinets

Casselberry Saddle 30" Sink Base

CS-SB30S

Ellington Saddle 30" Sink Base

The Ellington Saddle 30" Sink Base is 34-1/2" high and 24" deep. It comes with 2 doors and 2 false drawers. Dimensions: 30" W x 34-1/2" H x 24" D

$469.35 $782.25 Save 40%

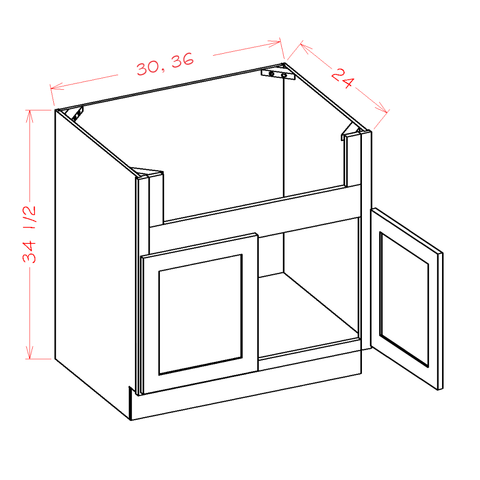

Casselberry Saddle 36" Farmhouse Sink Base

CS-FSB36

Ellington Saddle 36" Farmhouse Sink Base

The Ellington Saddle 36" Farmhouse Sink Base is 34-1/2" high and 24" deep. It comes with 2 doors. Dimension: 36" W x 34-1/2" H x 24" D

$512.93 $854.88 Save 40%

Quick links:

Showing 19 products.

Other Base Cabinets

Casselberry Saddle 42" Vanity Combo w/ Drawers

CS-VDDB42

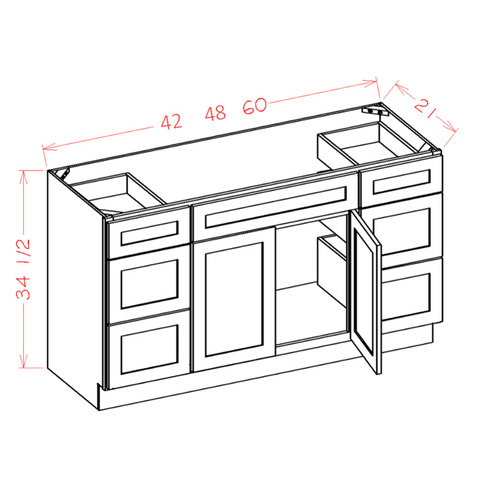

Ellington Saddle 42" Vanity Combo w/ Drawers

The Ellington Saddle 42" vanity combo for single sink with drawers is 21" deep. It has 1 door, 3 drawers on each side and 1 false front drawer. Dimensions: 4...

$1,084.13 $1,806.88 Save 40%
Casselberry Saddle 24" Vanity Sink Base

CS-VS24

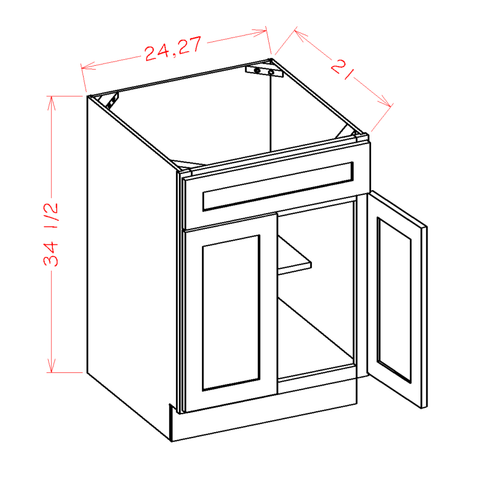

Ellington Saddle 24" Vanity Sink Base

The Ellington Saddle 24" vanity sink base cabinet is 21" deep. It includes 2 doors and 1 false drawer. Dimensions: 24" W x 34-1/2" H x 21" D

$374.85 $624.75 Save 40%
Casselberry Saddle 18" Vanity Drawer Base

CS-3VDB18

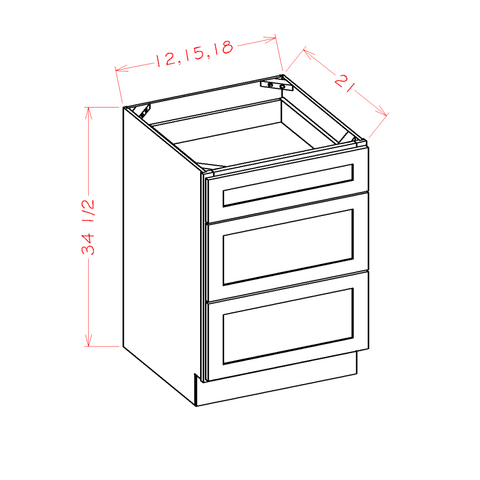

Ellington Saddle 18" Vanity Drawer Base

The Ellington Saddle 18" W x 34.5" H x 21" D vanity 3-drawer base cabinet has 3 drawers. Dimensions: 18" W x 34-1/2" H x 21" D

$539.70 $899.50 Save 40%
Casselberry Saddle 12" Vanity Drawer Base

CS-3VDB12

Ellington Saddle 12" Vanity Drawer Base

The Ellington Saddle 12" W x 34.5" H x 21" D vanity 3-drawer base cabinet is 34-1/2" high and 21" deep. It has 3 drawers. Dimensions: 12" W x 34-1/2" H x 21" D

$471.98 $786.63 Save 40%
